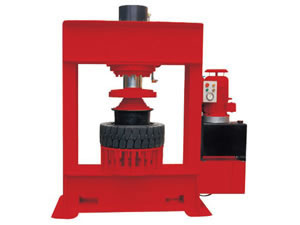

العربيةTire Press
Standard Features
Heavy-duty Frame
The construction is welded by large-scale I beam and channel beam
High-grade Hydraulic Cylinder
The piston rod is gdnded and hard-chrominm plated
Compact Hydraulic Power Unit
First level quality in the area
Operation Panel
Operated by a handle for Down/Up
Any position can be stopped when the handle released
Tooling
Provide two kinds of tooling for option
One is for 2-piece dm tyre
Another is for 3-piece&4-piece dm tyre
Easy service&Heavy durability
Optional Features
Special Tooling Requirement Are Available
Special Input Voltage Are Available
| Specification of Tyre Press | |||||
| 80Tons Solid Tyre Press | |||||
| Model | TP80 | ||||
| Max Hydraulic Pressure | ton | 80 | |||
| Max Tyre Dimension | inch | 15 | |||
| Total Length | mm | 1640 | |||
| Total Width | mm | 700 | |||
| Total Height | mm | 2170 | |||
| Operating Pressure | Mpa | 21 | |||
| Cylinder Stroke | mm | 400 | |||
| Oil Tank Capacity | L | 30 | |||
| Motor | kw | 5.5 | |||
| Weight | kg | 1100 | |||
| 120Tons & 160Tons Solid Tyre Press | |||||
| Model | TP120 | TP160 | |||
| Max Hydraulic Pressure | ton | 120 | 160 | ||
| Max Tyre Dimension | inch | 20 | |||
| Total Length | mm | 2090 | |||
| Total Width | mm | 850 | |||
| Total Height | mm | 2210 | |||
| Operating Pressure | Mpa | 25 | 33 | ||
| Cylinder Stroke | mm | 400 | |||
| Oil Tank Capacity | L | 30 | |||
| Motor | kw | 5.5 | 7.5 | ||
| Weight | kg | 1510 | 1610 | ||
| STANDARD FEATURES | OPTIONAL FEATURES | ||||
| · Heavy-duty Frame | · Special Tooling Requirement Are Available | ||||
| The construction is welded by large-scale I beam and channel beam | · Special Input Voltage Are Available | ||||
| · High-grade Hydraulic Cylinder | |||||
| The piston rod is grinded and hard-chromium plated | |||||
| · Compact Hydraulic Power Unit | |||||
| First level quality in the area | |||||
| · Operated Pannel | |||||
| Operated by a handle for Down/Up | APPLICATIONS | ||||
| Any position can be stopped when the handle released | · Assembly & Disassembly of Solid Tyre | ||||
| · Tooling | |||||
| Provide two kinds of tooling for option | |||||
| One is for 2-piece rim tyre | |||||
| Another is for 3-piece & 4-piece rim tyre | |||||
| · Easy service & Heavy durability | |||||
| TOOLING | |||||
| · Tooling for 2-piece rim tyre | |||||
| Type | Max Tyre Dimension(inch) | Pusher Ring (pcs) | Flange Ring (pcs) | Cage(pcs) | |
| TOOL-Ⅱ | 20 | 11 | 6 | 4 | |
| · Tooling for 3-piece & 4-piece rim tyre | |||||
| Type | Max Tyre Dimension(inch) | Pusher Ring (pcs) | Base Plate (pcs) | Cage(pcs) | Cone (pcs) |
| TOOL-Ⅳ | 20 | 6 | 3 | 6 | 6 |
Assembly&Disassembly of Solid Tyre
| Model | TP80 | TP120 | TP160 |
| Capacity | 80ton | 120ton | 160ton |
| Max.Type Dimension | 15inch | 20inch | 20inch |
| Total Length | 1640mm | 2090mm | 2090mm |
| Total Width | 700mm | 850mm | 850mm |
| Total Height | 2170mm | 2210mm | 2210mm |
| Operating Pressure | 21MPa | 25MPa | 33MPa |
| Cylinder Stroke | 400mm | 400mm | 400mm |
| Oil Tank Capacity | 30L | 30L | 30L |
| Electro-Motor | 5.5kw | 5.5kw | 7.5kw |
| Weight | 1100kg | 1510kg | 1610kg |
Tooling for 2-piece rim tyre
| Type | Max Tyre Diemension | Cage(pcs) | Push Ring(pcs) | Flange Ring(pcs) |
| TOOL-II | 20" | 4 | 11 | 6 |
Tooling for 3-piece & 4-piece rim tyre
| Type | Max Tyre Diemension | Cage(pcs) | Push Ring(pcs) | Cone(pcs) | Base Plate(pcs) |
| TOOL-IV | 20" | 6 | 6 | 6 | 3 |
